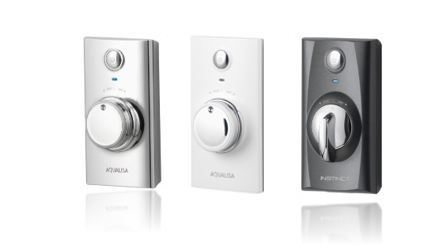

How to remove a Visage digital / smart main control?

1. On the underside of the control mounting box, you will see 2 self-retaining screws with cross-heads – remove the screws to release the control.

2. The top of the control has lugs that lock into the mounting box - carefully slide the control downwards and away from the mounting box to expose the data cable.

3. The cable can now be pulled out of the back of the control. If replacing the control, the cable must be firmly pushed into the control to ensure a good connection and seal.
