Quartz Touch Smart Shower

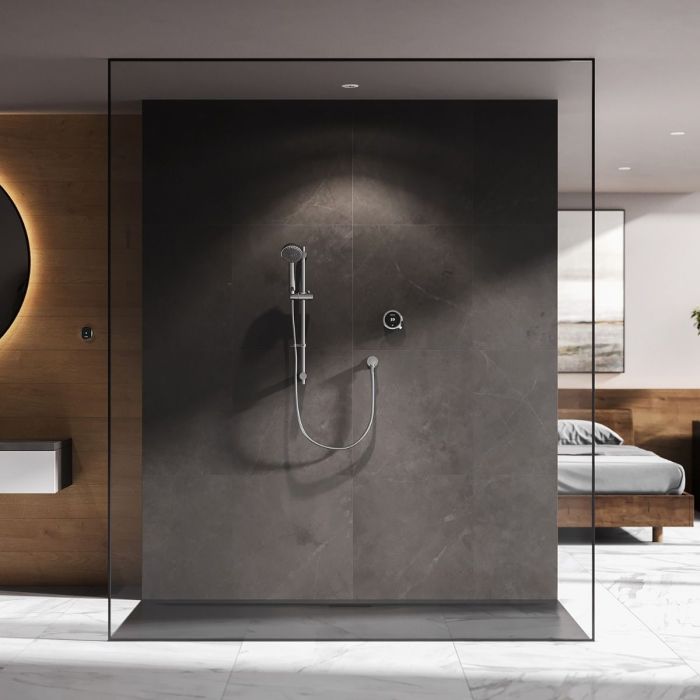

Quartz Touch Smart Digital Shower truly is modern showering personified.

Even the most advanced smart control remains simple and intuitive with Quartz Touch, Aqualisa's most personal showering experience. A choice of pre-set shower programmes or individual shower and bath settings for the whole family, from anywhere, is modern showering personified.
Configure your shower with the dropdowns below.
*Please note outlet configurations are model dependant*
Configured Product
SKU Quartz Touch
Loading...

“Brilliant products and outstanding customer service that is so rare to find these days.”

- Jon Haynes
  • Quartz Touch Smart Digital Shower truly is modern showering personified. Combining tried and tested digital shower technology with smart features, Quartz Touch allows every family member to create and enjoy their perfect showering experience. Choose from a range of pre-set modes in the Aqualisa App, or build and select the ultimate shower for you, starting this with one touch from the app or using voice commands via your smart home speaker. Built with true individuality in mind, Quartz Touch is the next generation in Smart Digital Showering.

  • The Aqualisa showers and accessories shown on this page have been endorsed by the Water Regulations Approval Scheme (WRAS) – an independent, UK-based certification body that tests products, fittings and materials in the plumbing industry.

    WRAS-approved products have been thoroughly checked to ensure they keep water safe from contamination, minimise waste, and are of a suitable quality and standard, complying with the legal Water Supply/Water Fittings Regulations.

Technical Specification

  • Minimum pressure requirements

    0.1 bar (Gravity) 1 bar (HP/Combi)

  • Maximum pressure requirements

    1 bar (Gravity) 5 bar (HP/Combi)

  • Aqualisa SmartValve™ inlet fitting connections 15mm push fit
  • Valve inlet centres 48mm
  • Inlet supply positions Hot right, cold left
  • Aqualisa SmartValve™ outlet fitting connection 15mm push fit
  • Permissible Aqualisa SmartValve™ siting location Loft, airing cupboard, under bath
  • Supply temperature

    Cold inlet temperature 1˚C (minimum)
    Cold inlet temperature 15˚C (maximum)
    Hot inlet temperature 65˚C (maximum)

  • Water system HP/Combi
  • Features

    One touch start/stop control
    LED display indicates when pre-selected temperature has been reached
    Wi-Fi & App compatible – control your product with your smart phone and smart home device e.g. Alexa, Google
    App functions include start/stop, shower timer, user dashboard, usage tracker and help & support
    Aqualisa SmartValve™
    Digital diverter technology
    90mm, 4 spray patterns (adjustable head)

  • Colour Chrome
  • Guarantee period

    5-year guarantee – shower unit
    2-year guarantee – shower head and kit

  • Approvals

    CE Marking
    UKCA
    BEABS

  • Flow rates 10-20 lpm

View Data Sheets

View our datasheets page to see product datasheets for all of our SKUs.

View Data Sheets

User Guides

Download or view Product User Guides

Read our user guides which will help you understand your new Shower and how to maximise all the benefits.

View User Our Guides

Aqualisa Smart App User Information

How to set up and use Aqualisa Smart App

Click for information on how to set up and use the Aqualisa Smart App.

View Smart App Information

Installation Guide

All Aqualisa Installation Guides

Complete step by step guides to help install your new Smart Digital Shower.

View and Download Installation Guides
