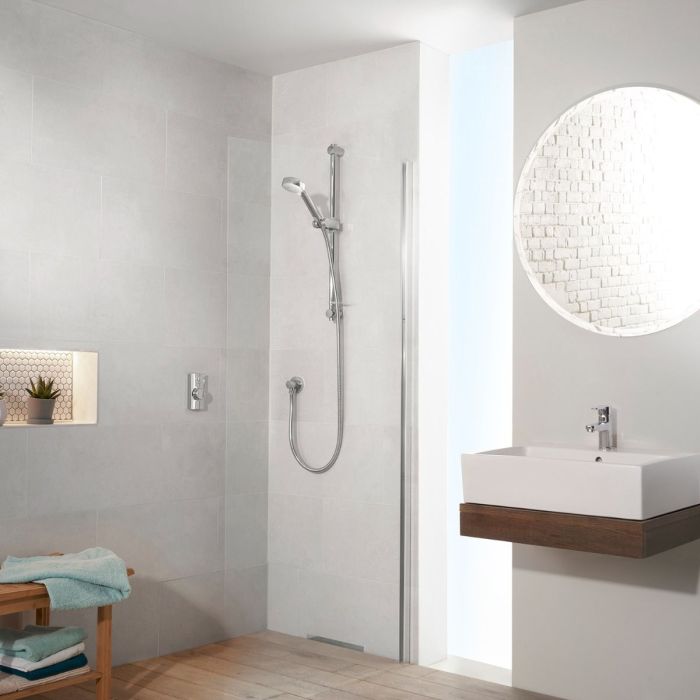

Visage Q Smart Shower

Technical Specification

• Minimum pressure requirements- high pressure

  0.1 bar (Gravity), 1 bar (HP/Combi)

• Maximum pressure requirements- high pressure

  1 bar (Gravity), 5 bar (HP/Combi)

• Aqualisa SmartValve™ inlet fitting connections

  15mm push fit fittings, valve inlet centres 48mm, inlet supply positions – hot right, cold left

• Aqualisa SmartValve™ outlet fitting connection

  15mm push fit

• Permissible Aqualisa SmartValve™ siting locations

  Loft, airing cupboard, under bath

• Supply temperature

  Cold inlet temperature 1˚C (minimum)
  Cold inlet temperature 15˚C (maximum)
  Hot inlet temperature 65˚C (maximum)

• Water system

  HP / Combi / Boosted gravity

• Blended outlet temperature settings

  Factory mid set blend temperature 45˚C, adjustable temperature setting – minimum 35˚C, maximum 55˚C

• Electrical requirements - Aqualisa SmartValve to mains

  Switched fused spur 3amp, processor main cable length 2m, required voltage 230 – 240V

• Electrical requirements - Controller to Aqualisa SmartValve

  Low voltage data cable length 7.5m

• Data cable voltage

  5V

• Features

  One touch start/stop control
  LED display indicates when pre-selected temperature has been reached
  Wi-Fi & App compatible – control your product with your smart phone and smart home device e.g. Alexa
  App functions include start/stop, shower timer, user dashboard, usage tracker and help & support
  Aqualisa SmartValve™
  Compatible with wired remote control

• Guarantee period

  5-year guarantee - shower unit
  2-year guarantee - shower head and kit

• Approvals

  CE Marking, UKCA, BEAB
