How do I set the primary outlet on a divert model?

For Quartz Touch and Optic Q models, the outlets are configured via the controller settings.

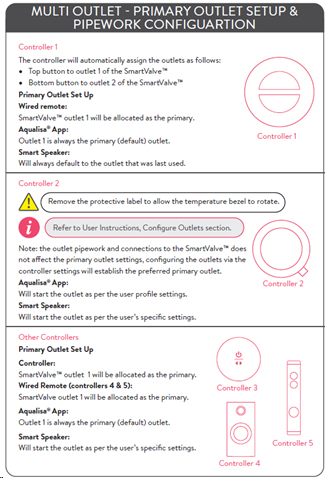

For 2 buttoned shower divert controllers, the outlets are assigned to the controller buttons as follows:

• Top button to outlet 1 of the SmartValve™
• Bottom button to outlet 2 of the SmartValve™
• Where a wired remote is in use, outlet 1 will be allocated as the primary.
• For single button divert controllers (without a display screen), the primary outlet must be connected to outlet 1 of the SmartValve™.
• For most installations, we suggest that outlet 1 is plumbed in as the primary outlet.
